Description

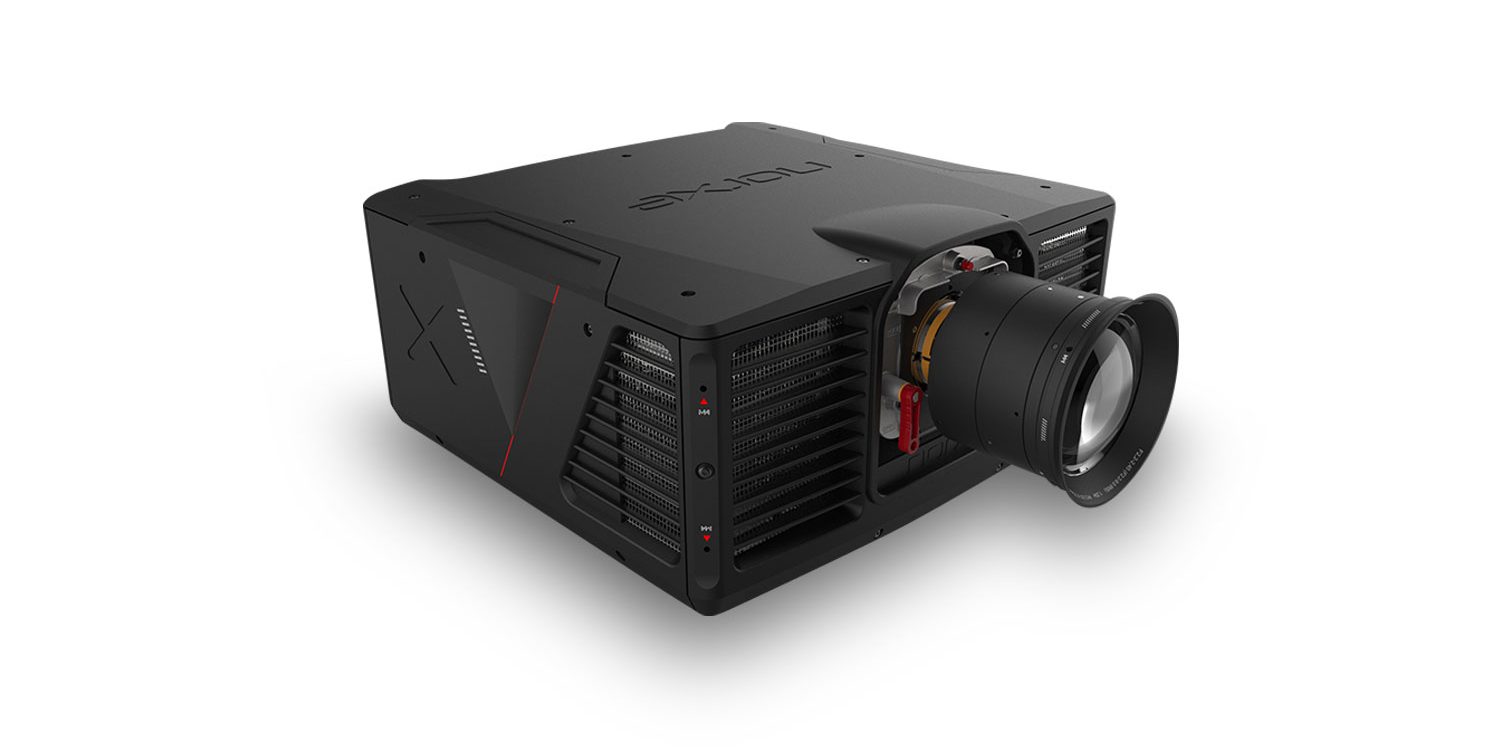

The P60 is driven by our new Unify® electronics platform with a quad DP1.4 interface to support both present and future applications, 4K, 6K and 8K. The powerful new Unify electronics allows the processing and display of native 4K content at up to 240Hz refresh rate.
Illuminated by our new Dual NXL™ hybrid light source, the P60 is perfectly suited for both front and rear projected systems. Like all other P-series projectors, the P60 is a true solid state illuminated product and designed for fixed and motion-base applications.
The P60 is designed with a low maintenance, solid state cooling system. Unify electronics provides tools for linear and predictable performance over time. The first and only scheduled maintenance on the P60 occurs after 50,000 hours and the 5 years standard warranty can be extended up to 10 years.
For consistent and linear color and brightness performance over time, the P60 is equipped with White Point Tracking.
All Norxe products are compatible with the N-series lenses.
Norxe P60 is available with IR for NVG stimulation.
Preliminary Specifications
Preliminary Specifications
| Projector type | Single chip DLP projector |
| Resolution | 4096 x 2176 (Native) |
| Brightness | 5,000 RGB ANSI lumens |
| Contrast ratio | 1,600:1 – 8,000:1 sequential. >5,000,000:1 dynamic |
| Aspect ratio | 1.90:1 / 17:9 |
| Brightness uniformity | 90% |
| Lens options | N1: 0.70 – 1.09:1 @ 4K Native
N2: 1.05 – 1.40:1 @ 4K Native N3: 0.55:1 @ 4K Native N4: 1.35:1 – 2.27:1 @ 4K Native |
| Lens shift (max) | Vertical up to 116% lens option dependent
Horizontal up to 75% lens option dependent |
| Color correction | P7 |
| Light source
(fully sealed optical architecture) |
RGB SSI (+ optional IR LED. Standard IR wavelength where applicable is 740nm, other IR wavelengths available) |
| Illumination lifetime | >60,000 hours |
| Optical block lifetime | > 100,000 hours |
| Orientation | Orientation free, no limitation |
| Inputs | 4 x DisplayPort 1.4, 1 x HDMI 2.0 |
| Input resolutions/Refresh | 4096 x 2176. 60Hz/120Hz/240Hz*¹ |
| 3D | Active – up to 4K@120Hz |
| Latency | 19 ms @ 60Hz/9.5 ms @ 120Hz |
| Bit depth | Up to 12-bit*² |
| Embedded Warp & Blend | Yes |
| Control | IR, Ethernet, 2 x BNC (sync/trigger) & 1 x Mini DIN |
| Software tools | norxenet |
| Operating temperature | 0 to 40°C/32 to 104°F (0 to 3000m) |
| Storage temperature | -20 to 60°C/-4 to 140°F |
| Operating humidity | 20 to 80% (non-condensing) |
| Storage humidity | 10 to 90% (non-condensing) |
| Dimensions (L x W x H)
(height excl. removeable feet) |
488x505x241 mm/ 19.68×19.88×9.49 inch |
| Weight | 22.6 kg/49.8 Ibs |
| Standard accessories | Power cord EUR & US + local region (where applicable), wireless IR remote control, lens mount and lens lock fixings |
| Warranty | Limited 5 year parts & labor, extendable up to 10 years |
| 24/7 | Yes |
Preliminary specifications subject to change without prior notice. Errors & omissions exempt.
*¹ – 240Hz available as a future upgrade.
*² – Bit depth dependent on total bandwidth, limitations apply with higher refresh rates.
Documentation
Documentation
Service
Service
Lens Shift Generator
Projector lens shift enables the customer to move the image on the screen vertically and/or horizontally by moving the projector lens relative to the projector imager (DMD). Maximum lens offset relative to the optical axis depends on the lens type and native image resolution.
